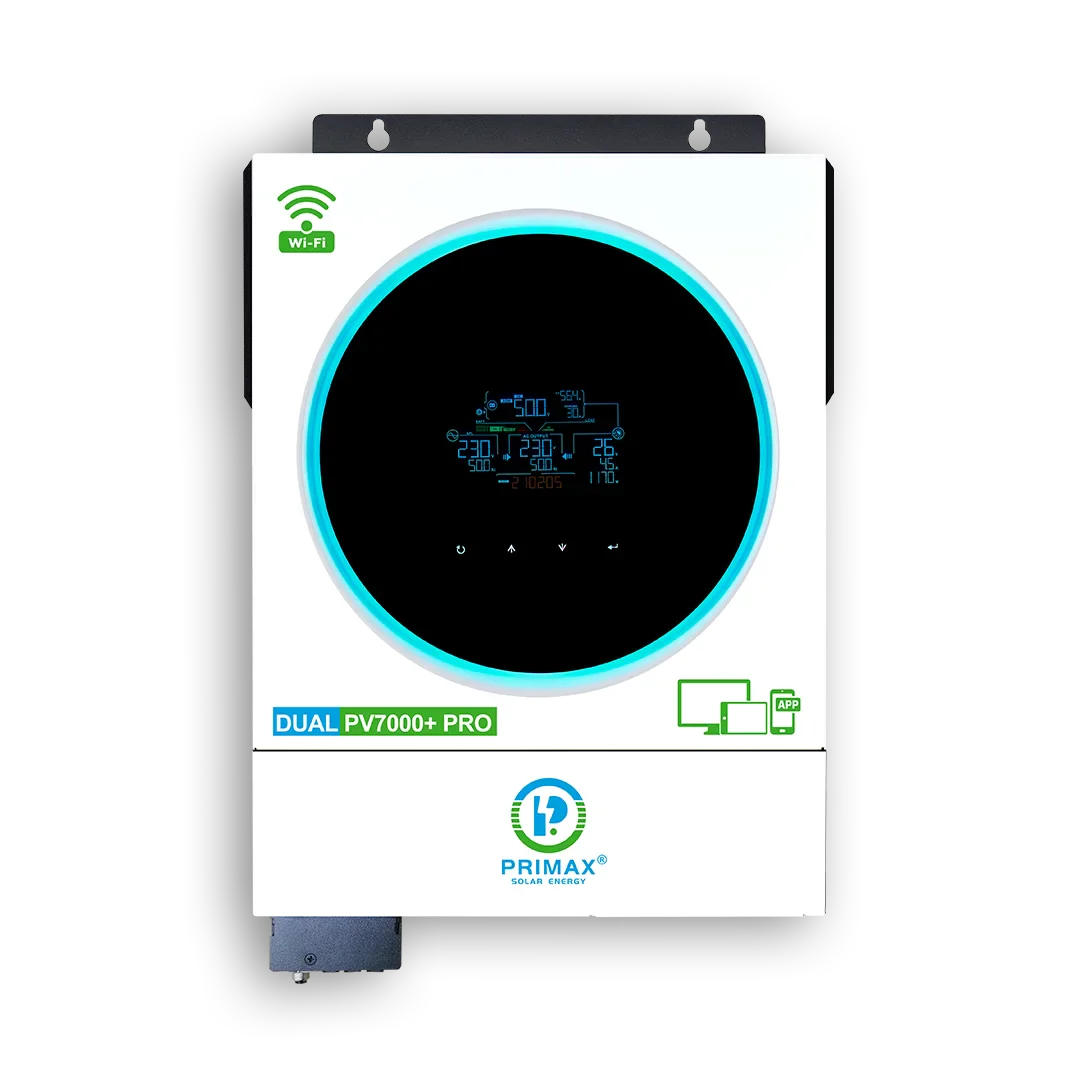

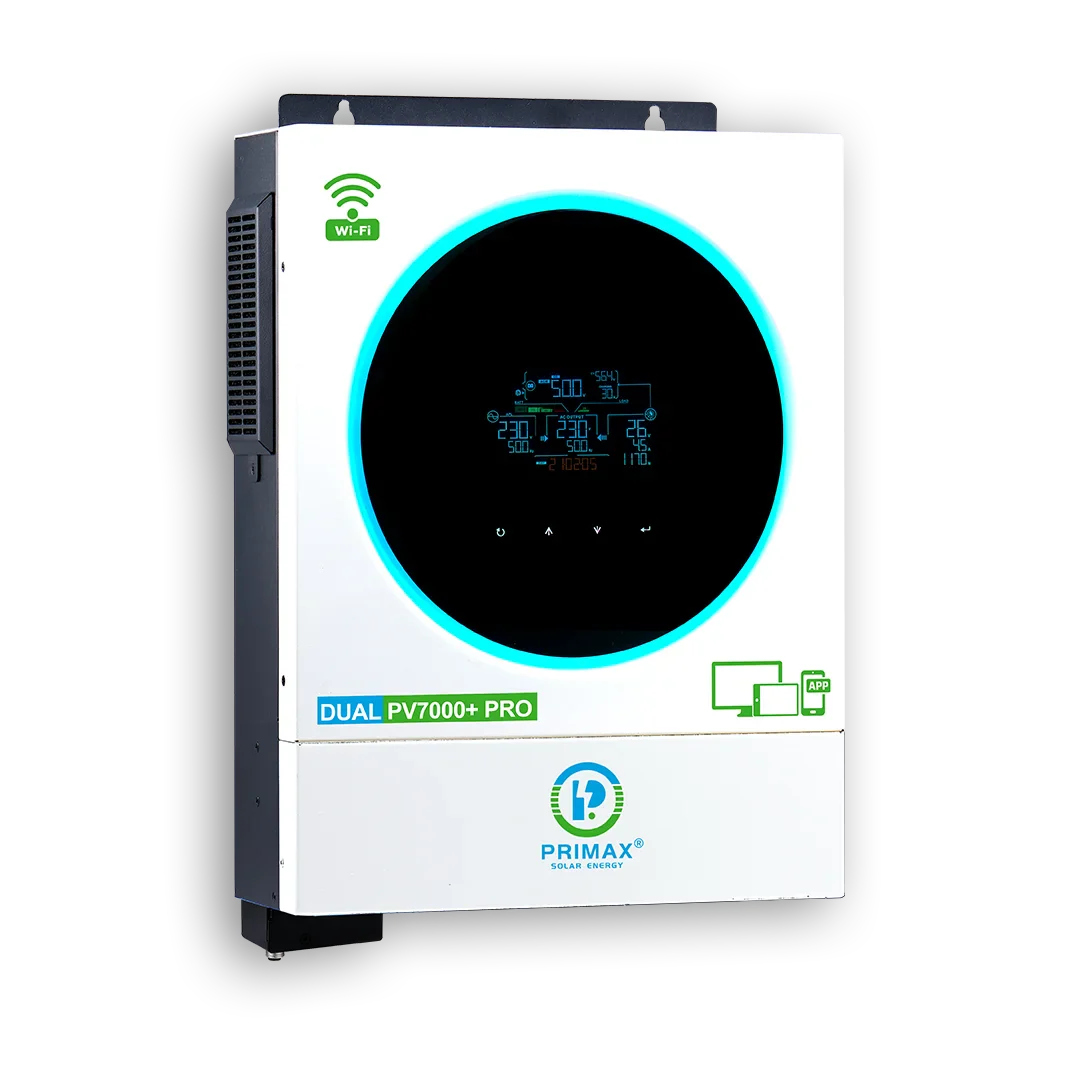

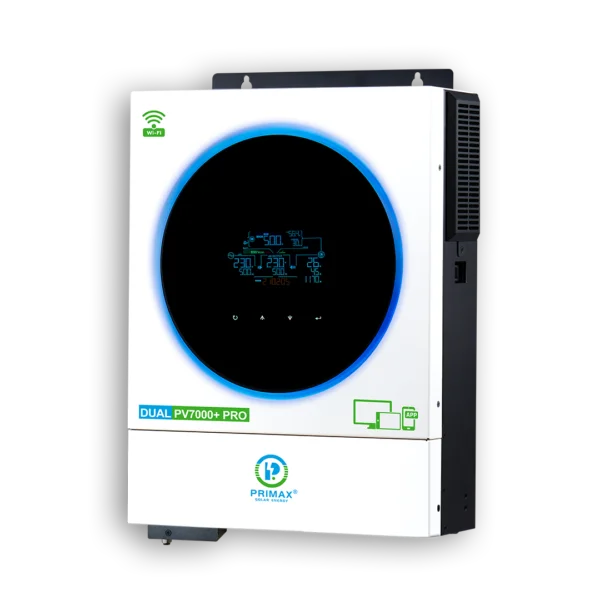

PRIMAX GALAXY PV7000+ Hybrid Solar Inverter 6KW with 7000W MPPT Solar Charge Controller

Vendor: PRIMAX GALAXY
SKU: PRIMAX GALAXY PV7000+
Availability: In stock
Product type: Inverex
Rs.189,999.00
Rs.205,000.00
Rs.189,999.00
Save Rs.15,001.00
Please hurry! Only 5 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: Rs.189,999.00
10 customers are viewing this product

All Pakistan Delivery Available

Cash on delivery is available

Free Returns

Learn More.
PRIMAX GALAXY PV7000+ Hybrid Solar Inverter 6KW with 7000W MPPT Solar Charge Controller

PRIMAX GALAXY PV7000+ Hybrid Solar Inverter 6KW with 7000W MPPT Solar Charge Controller

Rs.205,000.00 Rs.189,999.00

PRIMAX GALAXY PV7000+ Hybrid Solar Inverter 6KW with 7000W MPPT Solar Charge Controller

Rs.205,000.00 Rs.189,999.00

PRIMAX GALAXY PV7000+ Hybrid Solar Inverter 6KW with 7000W MPPT Solar Charge Controller















  • Dual output for smart load management
  • Maximum PV input current 27A
  • Wide PV input voltage range 60VDC~450VDC
  • Touchable button with large 4.3″ colored LCD
  • Customizable status LED ring with RGB lights
  • Built-in Wifi for mobile monitoring (Android/iOS App available)
  • Supports USB On-the-Go function
  • Reserved communication port (RS485, CAN-BUS or RS232) for BMS
  • Maximum charging current 120A
  • Battery independent design
  • Feed-in to the grid with storage backup
  • Battery equalization extends life cycle
  • Built-in anti-dust kit
  • Data log event stored in the inverter

      Download PDF

RATED POWER 6000VA/6000W
INPUT
Voltage 230VAC
Selectable Voltage Range 170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances)
Frequency Range 50Hz/60Hz(Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC+-10%
Surge Power 12000VA
Efficiency (Peak) 90% ¬ 93%
Transfer Time 15ms (For Personal Computers)



20ms (For Home Appliances)

Waveform Pure Sine Wave
BATTERY
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 500VDC
Maximum PV Array Power 6000W
MPPT Range@ Operating Voltage



Maximum PV Input Current

60¬450VDC



27A

Maximum Solar Charge Current 120A
Maximum AC Charge Current 100A
Maximum Charge Current 120A
PHYSICAL
Dimension D*W*H(mm)



Net Weight (Kgs)

119*313.6*457.5



12

Communication Interface USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-Condensing)
Operating Temperature -10¬50C
Storage Temperature -15¬60C
