Description

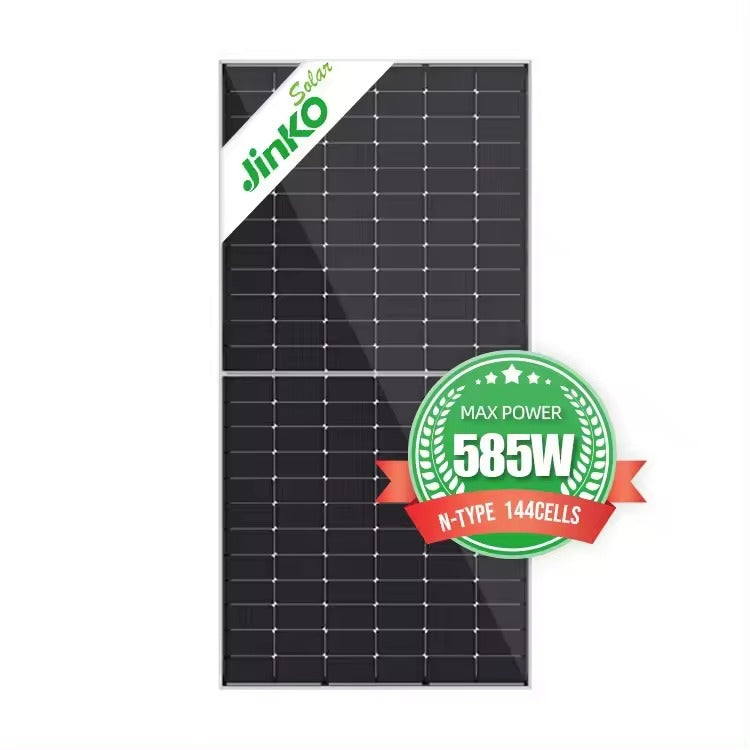

The Jinko Solar 585W Tiger Neo N-Type solar panel is a high-efficiency mono-facial module designed for maximum power generation and long-term reliability. With advanced SMBB and N-Type technology, it delivers excellent performance, low degradation, and strong output even in low-light conditions.
Specification
| Specification | Details |
|---|---|
| Brand | Jinko Solar |
| Model | Tiger Neo N-Type 72HL4 |
| Power Output | 585W |
| Cell Type | N-Type Mono-crystalline |
| Module Type | Mono-Facial |
| Efficiency | High Efficiency (~22%+) |
| Power Tolerance | 0 ~ +3% |
| Operating Temperature | -40°C to +85°C |
| System Voltage | 1000V / 1500V DC |
| Max Fuse Rating | 25A |
| Glass | 3.2mm Tempered Anti-Reflection Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Dimensions | 2278 × 1134 × 35 mm |
| Weight | 28 kg |
| Product Warranty | 12 Years |
| Performance Warranty | 30 Years |
Key Features
- 585W High Power Output
- N-Type Advanced Solar Technology
- SMBB Multi-Busbar Design
- Excellent Low Light Performance
- Very Low LID/LETID Degradation
- Strong Wind & Snow Load Resistance
- IP68 Waterproof Protection
- 30 Years Linear Power Warranty
- High Efficiency & Stable Output
- Ideal for Residential & Commercial Solar Systems
