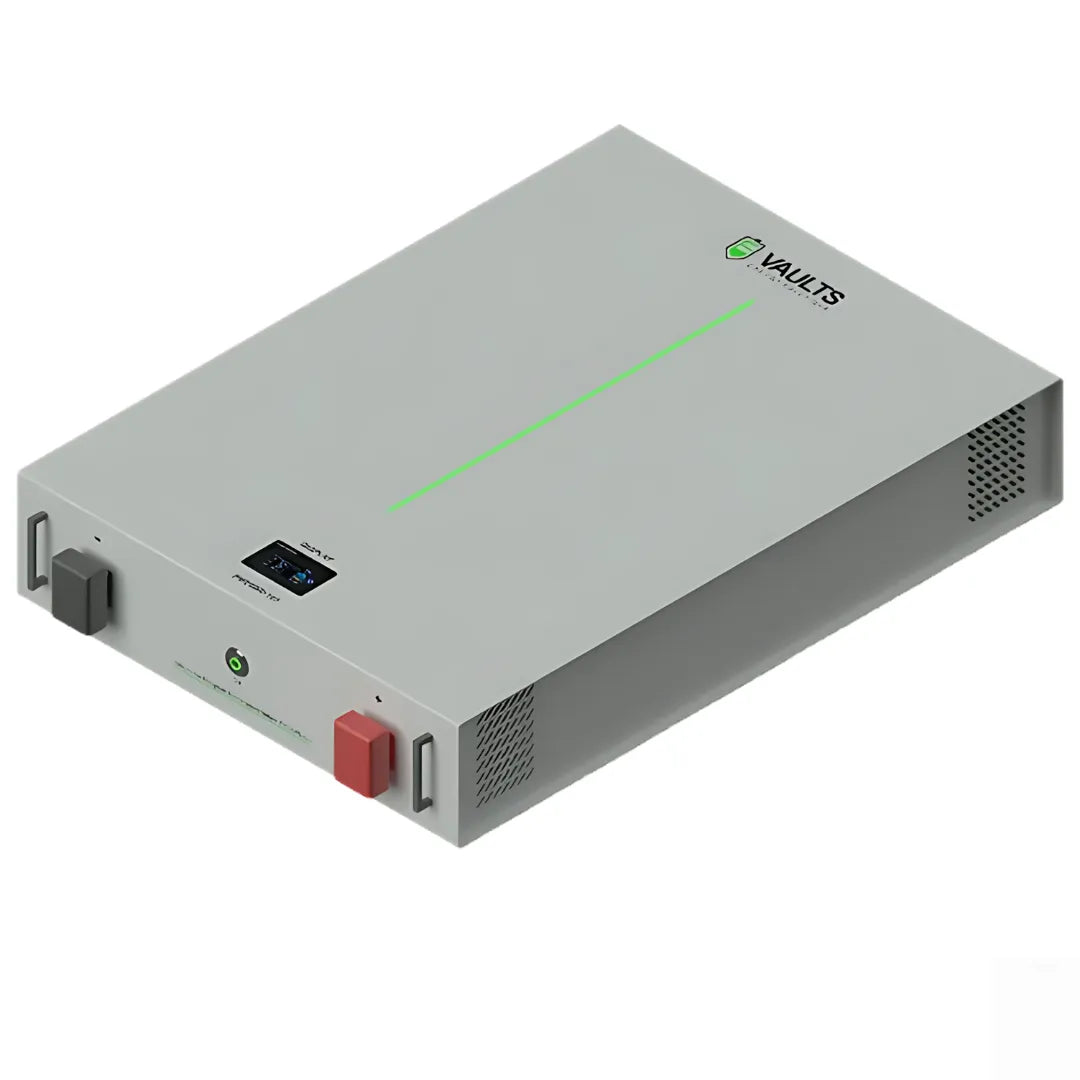

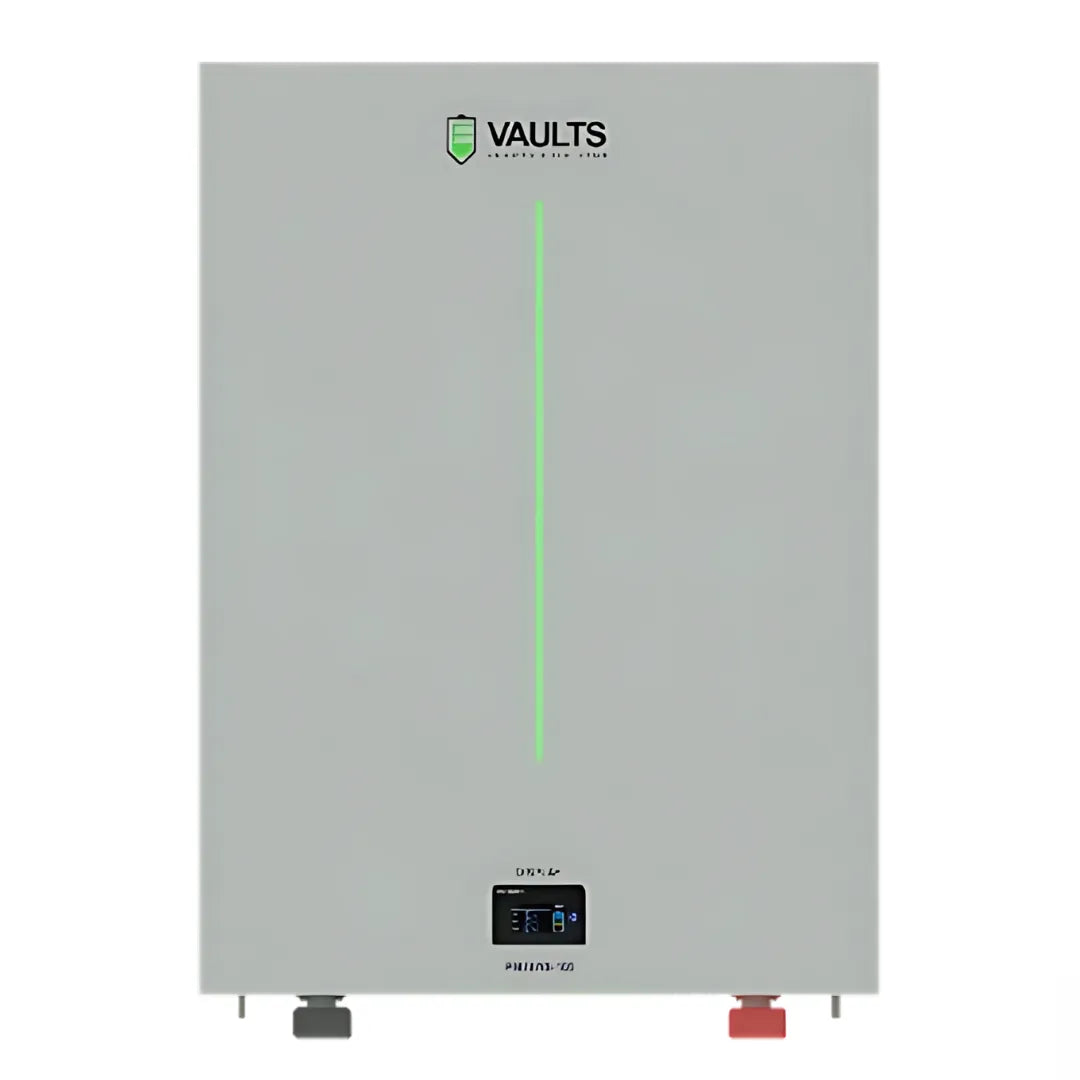

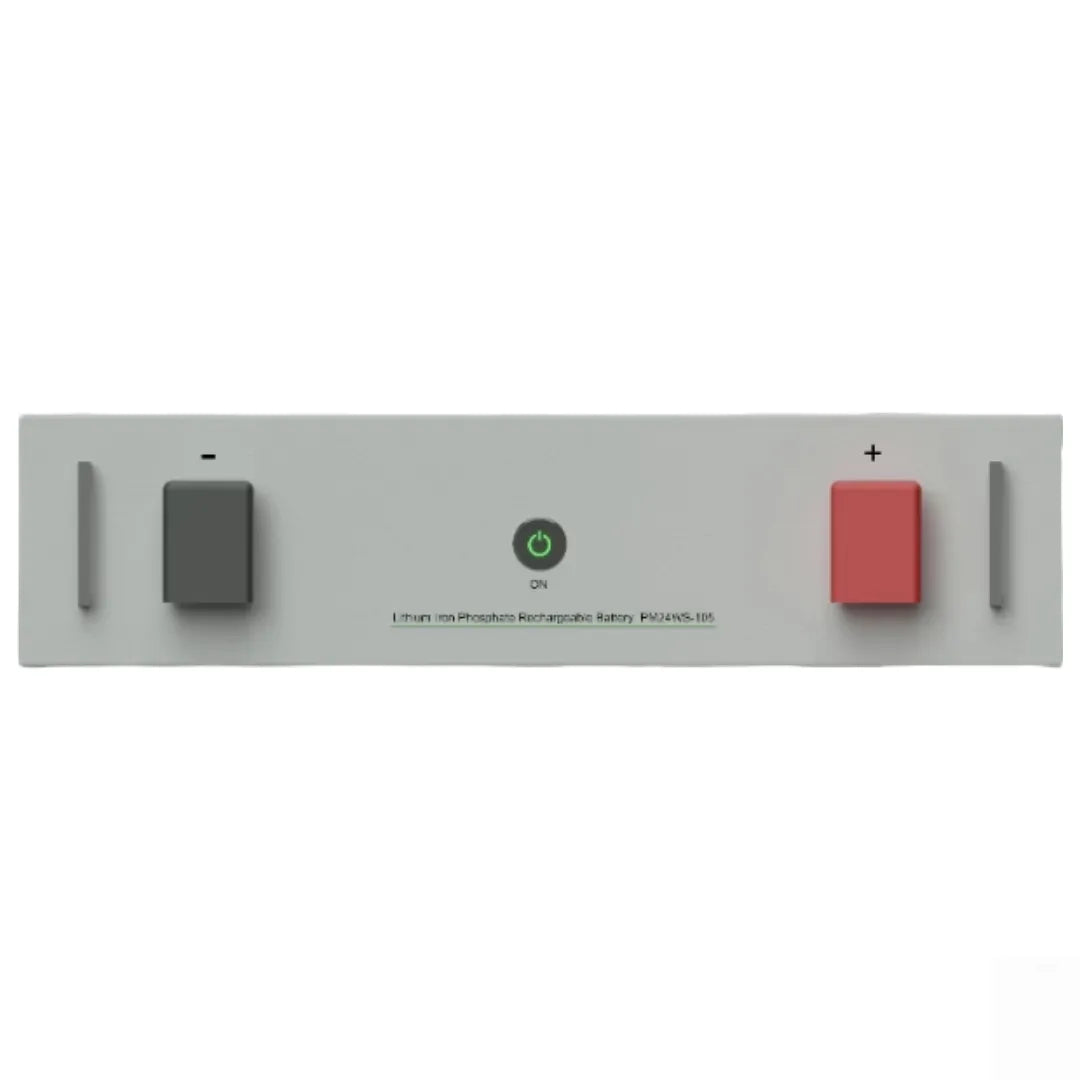

Power up your solar system with the Vaults PM24WS 2.4kWh Lithium Iron Phosphate (LiFePO4) Battery, engineered for high performance, durability, and safe energy storage. This next-generation battery is designed to meet the demands of modern solar energy systems—whether at home, in commercial spaces, or for off-grid power backup.
With an 8000-cycle life at 90% Depth of Discharge, Bluetooth app monitoring, and expandable design (up to 16 batteries in parallel), the PM24WS offers a future-proof investment in sustainable energy. Built using advanced LiFePO4 chemistry, it’s resistant to overheating, overcharging, and deep discharging—making it a long-term, low-maintenance solution.
Key Features:
- 2.4 kWh High-Capacity Storage – Ideal for homes, solar backups & off-grid setups
- LiFePO4 Technology – Maximum safety, long life, and thermal stability
- Bluetooth Monitoring – Check SOC, temp, current & voltage via app
- 8000 Charge/Discharge Cycles – Long lifespan with consistent performance
- Parallel Ready (16x) – Expand your storage system with ease
- Smart Display – Real-time readout of battery health and performance
- Wide Temp Tolerance – Operates reliably in harsh environments
- Certified & Safe – CE, IEC, ISO certified with IP20 rating
| Specification | Detail |
|---|---|
| Model | Vaults PM24WS |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 24V |
| Usable Capacity | 2419.2 Wh (≈ 2.4 kWh) |
| Weight | < 35 kg |
| Cycle Life | 8000 Cycles @ 90% DoD |
| Design Life | > 10 Years (at 25°C) |
| Continuous Charge Current | 50A |
| Continuous Discharge Current | 75A |
| Peak Charge Current (20s) | 100A |
| Peak Discharge Current (20s) | 120A |
| Communication | Bluetooth (Mobile App) |
| Display | V.SOC, Current, Temp, Cell Voltage |
| Parallel Capability | Up to 16 PCS in one battery group |
| Operating Temp (Discharge) | -10°C to 50°C |
| Operating Temp (Charge) | 1°C to 50°C |
| Protection Rating | IP20 Enclosure |
| Certifications | ISO-9001, ISO-14001, ISO-45001, CE, IEC-62619, MH-63503, MH-62190 |
