Description

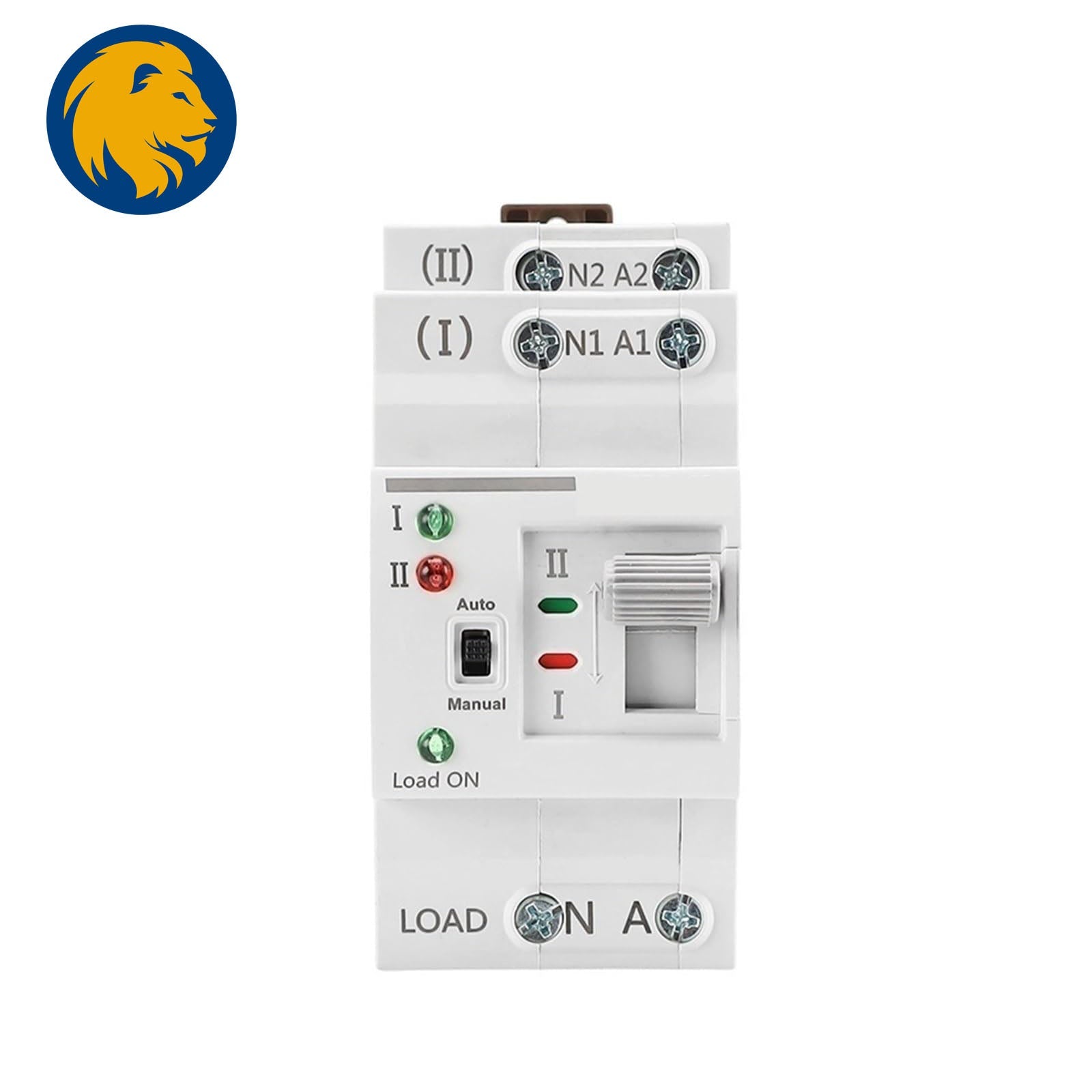

Mora AES-63A II Single Phase 63A Dual Power Automatic Transfer Switch (ATS)

Ensure reliable power transfer and uninterrupted operation with the Mora AES-63A II, a high-performance Dual Power Automatic Transfer Switch. Designed to automatically switch between power sources during outages, it eliminates downtime and provides continuous operation, ensuring that critical systems stay powered without interruption.

Key Features

  • Rated Operating Current: 63A

    • Ensures high power capacity for residential and small commercial applications.

  • Rated Insulation Voltage: 690V

    • Designed to handle high-voltage systems for enhanced protection and performance.

  • Rated Impulse Withstand Voltage: 8kV

    • Provides protection against power surges and lightning strikes, safeguarding your equipment.

  • Rated Working Voltage: AC220V

    • Suitable for typical residential and commercial single-phase power systems.

  • Rated Frequency: 50/60Hz

    • Compatible with both standard AC power frequencies worldwide.

  • Poles: 2P (2 Poles)

    • Ideal for single-phase electrical systems requiring dual power inputs.

  • Rated Short-Circuit Current: 50kA

    • High short-circuit current rating to protect the electrical system from faults.

  • Short Circuit Protection Device (Fuse): RT16-00-63A

    • Integrated fuse for automatic protection against short circuits.

  • Control Circuit:

    • Rated Control Voltage: AC220V, 50Hz
    • Normal Working Conditions: 85% Us - 110% Us

  • Auxiliary Circuit: AC220V, 50Hz, 5A

    • Supports the control and monitoring of auxiliary systems in the transfer process.

  • Contactor Changeover Time: <50ms

    • Fast transfer time ensuring there’s no noticeable interruption during power switching.

Applications

  • Residential Use: Ensures that essential household appliances continue operating during power interruptions.
  • Small Businesses: Perfect for small business environments that rely on continuous power to avoid service disruption.
  • Backup Power Systems: Ideal for installations with backup generators or alternate power sources, offering seamless switching and protection.

The Mora AES-63A II is a reliable and efficient Dual Power Automatic Transfer Switch that guarantees the safety and continuity of your power supply in both residential and commercial applications. With its fast switching time and robust protection features, this ATS ensures your systems remain operational during power disruptions.

Case grade 63
Rated operating curent le(A) 63A
Rated insulation voltage Ul 690V
Rated impulse withstand voltage Uimp 8kV
Rated working voltage Ue AC220V
Rated frequency 50/60Hz
Class PC class: can be switched on and loaded
without generating short-circuit current
Polenumber 2P
Rated short-circuit current Iq 50kA
Short circuit protection device (fuse) RT16-00-63A
Rated impulse withstand voltage 8kV
Control circuit Rated control voltage Us: AC220V,50Hz
Normal working conditions: 85%Us-110%Us
Auxiliary circuit AC220V 50Hzle=5A
Contactor change-overtime <50ms
